Features and Specifications
1. Industrial-grade integrated chassis: Ensures more stable machine operation.

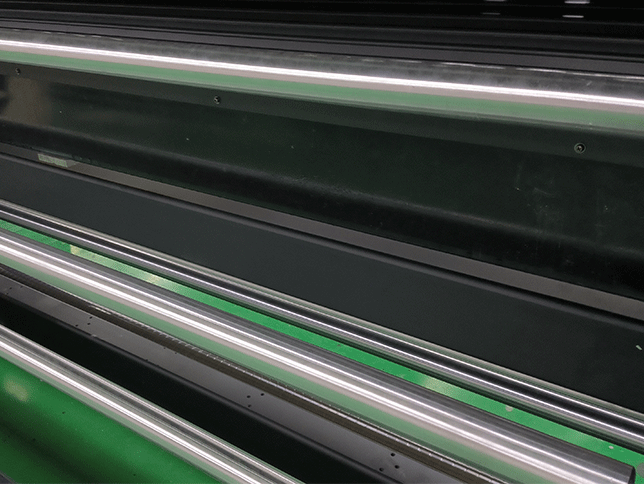

2. Larger and wider crossbeam: Provides greater strength and smoother machine operation.

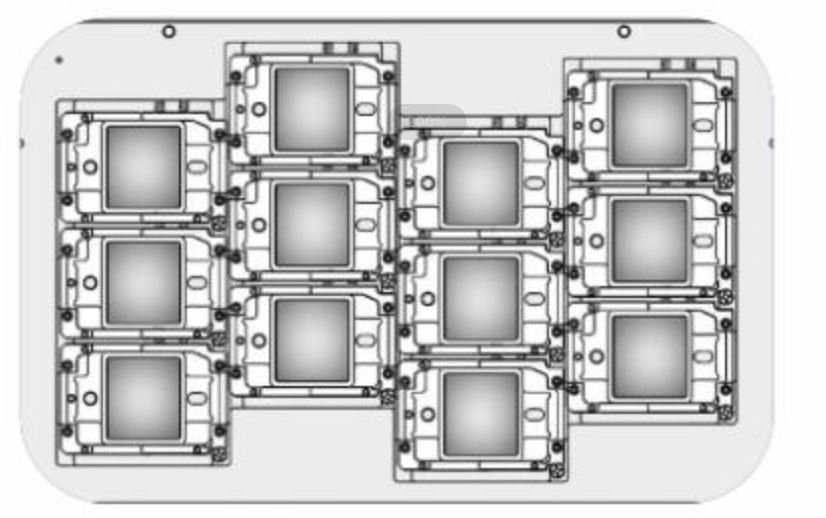

3. Optimized arrangement of the latest carriage base plates: Improves print speed while further enhancing print quality.

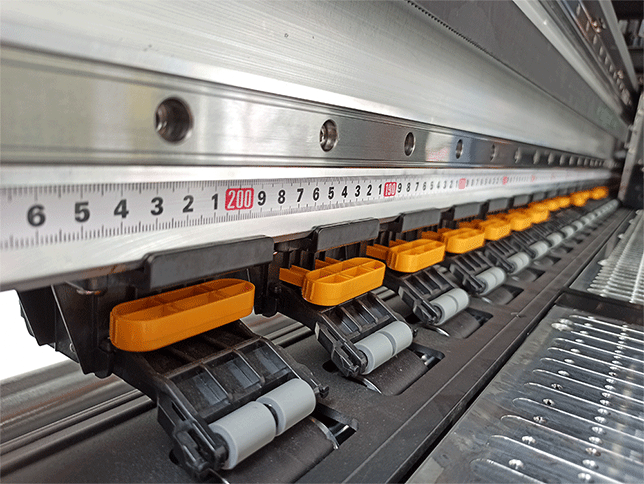

4. Increased density of pressure rollers + damping mechanism added to the front paper feed roller: Ensures more stable stepper motor operation, more precise paper feeding, and higher print accuracy.
5. Rear attachment with added paper guide rollers and denser roller grooves: Ensures smooth paper movement during printing, resulting in more consistent paper feeding and improved print quality.
6. Standard 15-liter high-capacity continuous ink supply system: Ensures uninterrupted ink supply during extended printing sessions, guaranteeing consistent print quality.

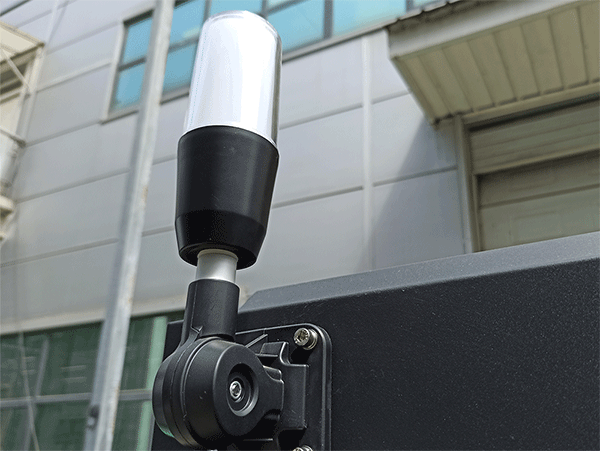

7. Integrated three-color alarm lights: Smart screen displays alarm logs and provides real-time visual monitoring, making alerts more intuitive and operation more convenient.

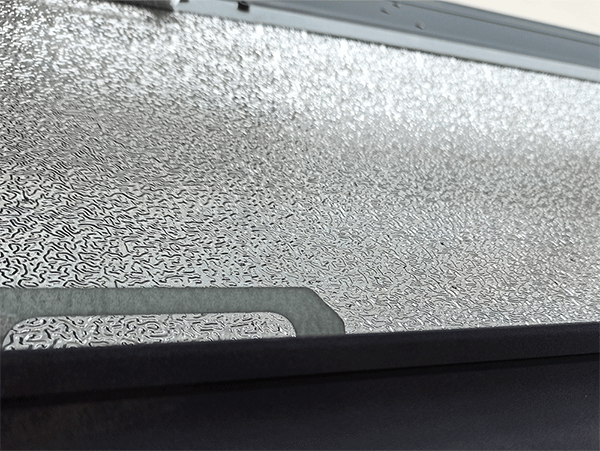

8. Heat-insulating panel: More effectively ensures drying results and prevents foreign objects from falling into the machine.
9. Container can accommodate 2 rows: Reduces floor space and significantly lowers transportation costs.
10. Pneumatic handle controls the lifting and lowering of the paper feed rollers: Makes operation more convenient.

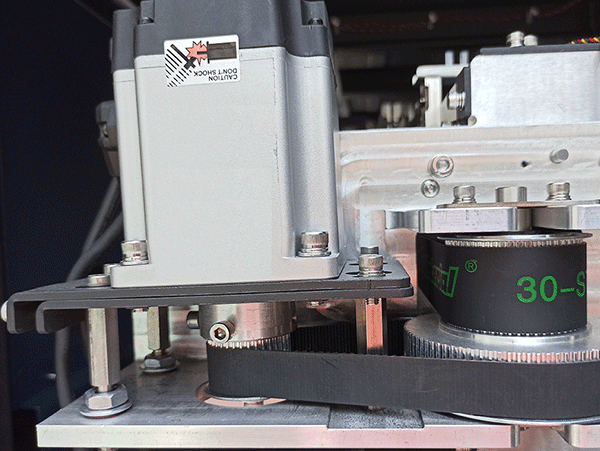

11. Servo motor + belt drive: High-precision linear encoder drive offers greater accuracy, smaller length errors, and more stable performance.
12. Integrated electrical control box with a single power connector: Ensures safer and more convenient wiring for customers.
13. New base design: Ensures more stable equipment operation. Optional 10,000-meter roll paper base allows direct printing on roll paper with a diameter of less than 90 cm.
14. 15L waste ink tank: The large-capacity design meets increased waste ink storage requirements, effectively protects the printer, and keeps the workshop cleaner and more organized.
